Giraffe

Height Adjustable Stair Access

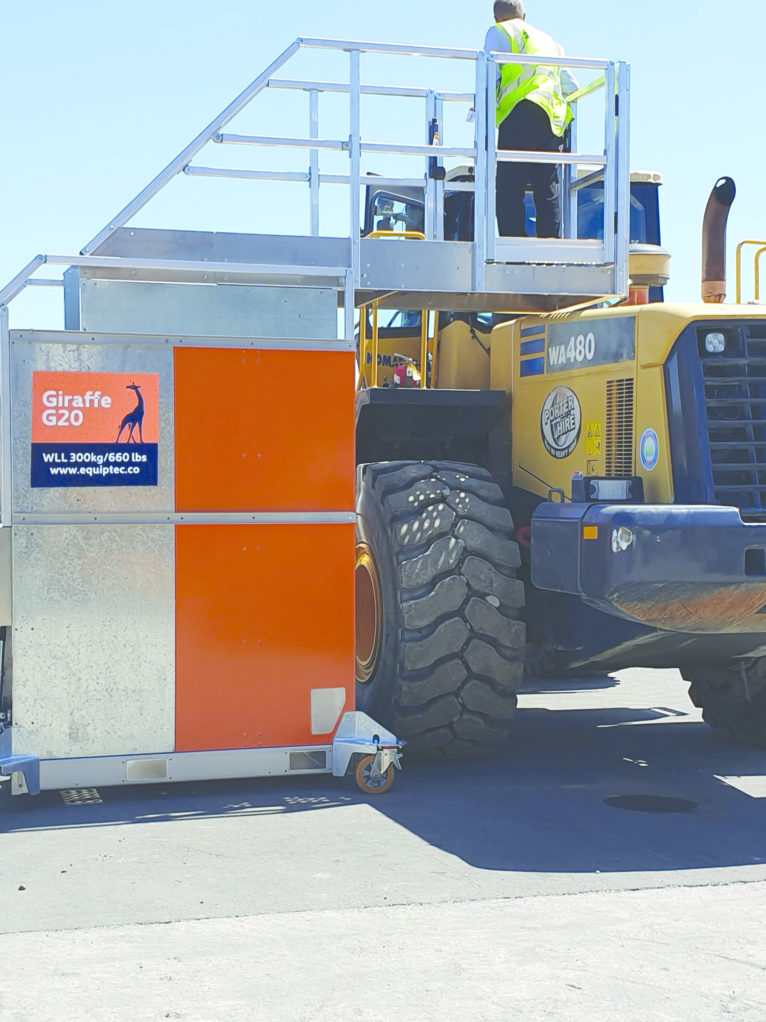

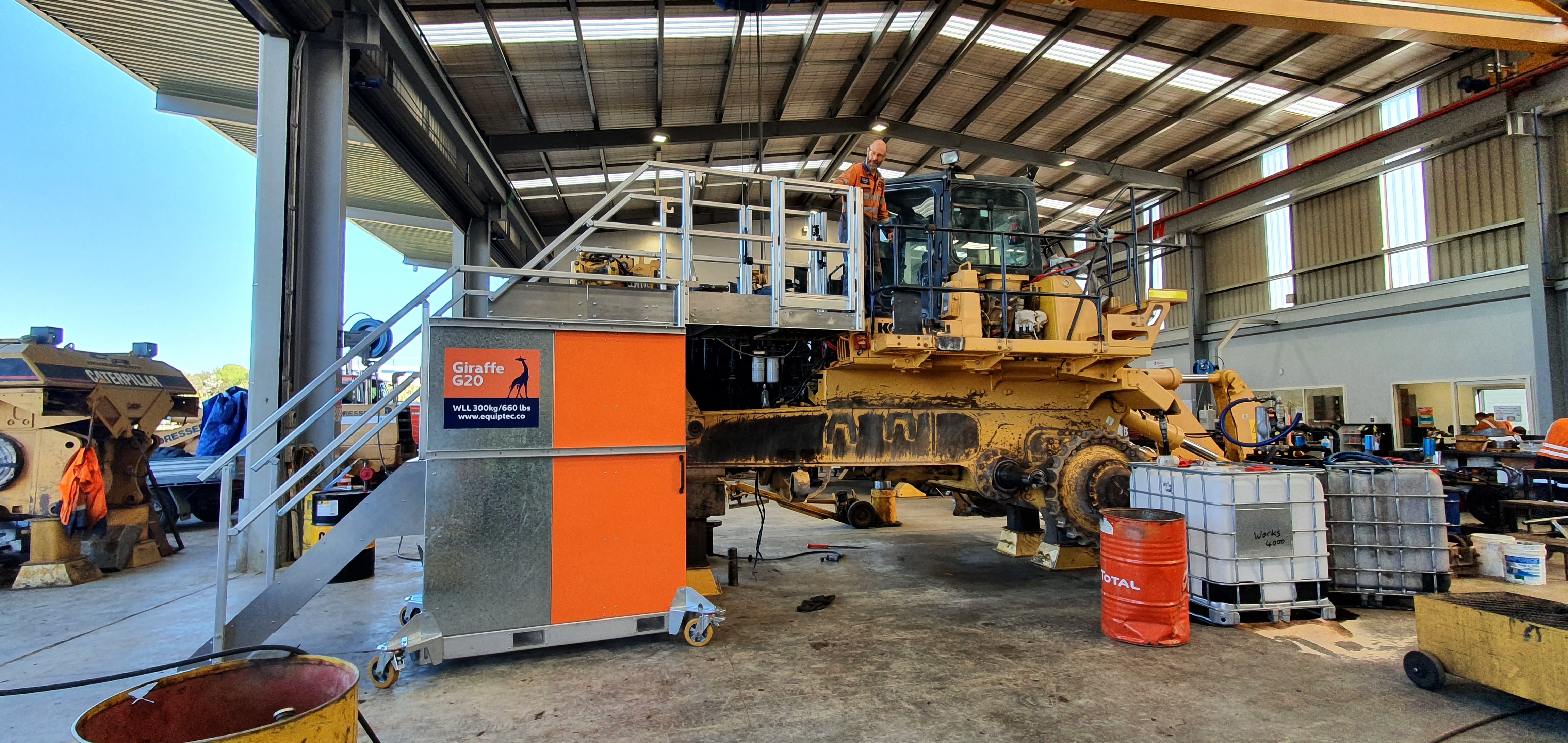

G20 - Keeping your people up to the job and your plant on the job

G20 - Keeping your people up to the job and your plant on the job

It goes without saying, but if you are comfortable and confident you can produce your very best. That's what the G20 does for your people...providing a spacious, strong, easily accessed and firm deck, at the position and height that best suits them to work their maintenance magic safely and in absolute confidence.

Your plant maintenance can be done faster - sometime lots faster - and your gear can be back in action quicker saving big dollars. Everyone wins with the G20.

SOME OF THE EQUIPTEC GIRAFFE G20 BENEFITS

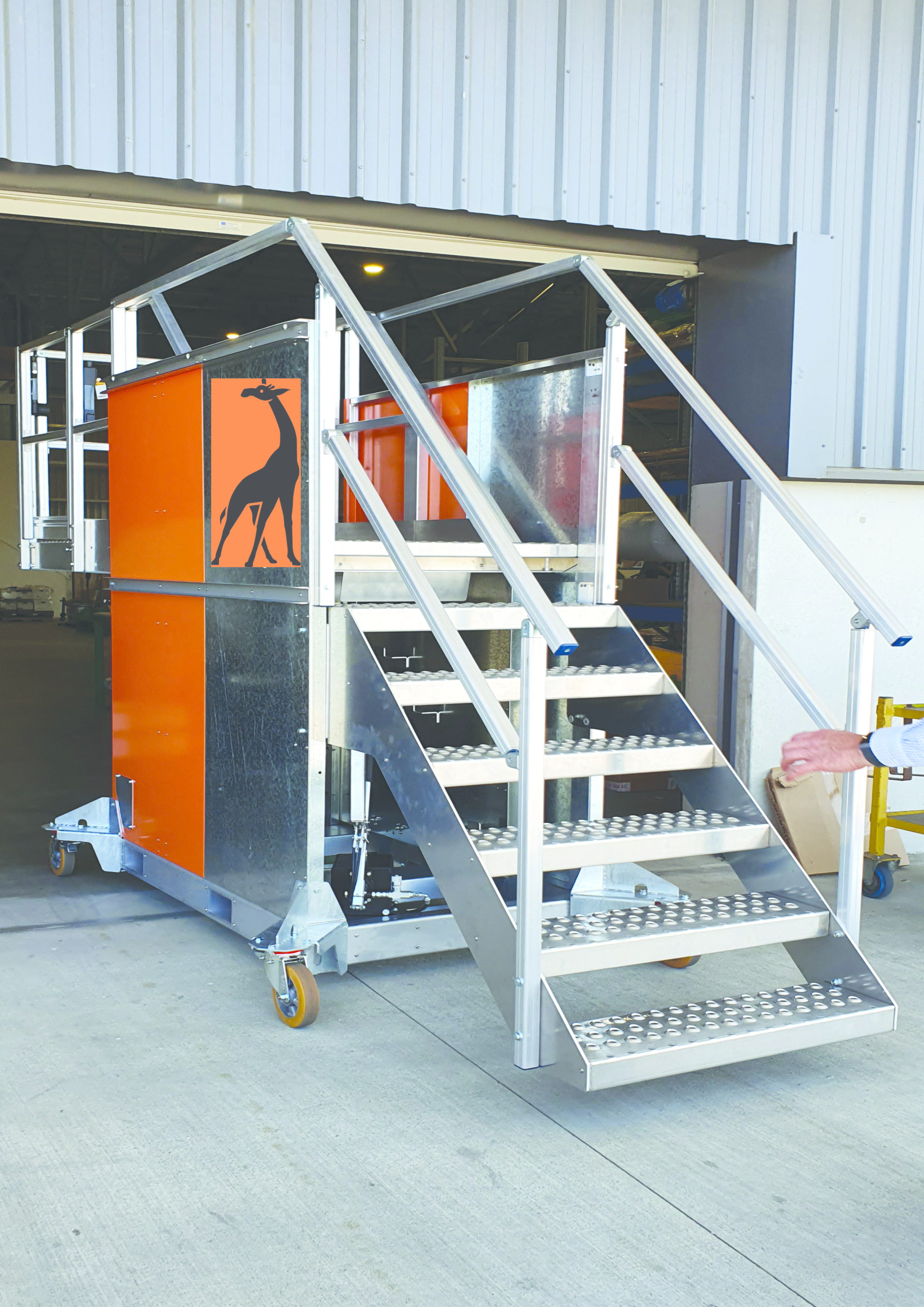

Handpump adjustment over 1350mm in height while deck cantilever remains the same allowing consistant access to multiple different height jobs
Wide easy climb stairs do not change angle throughout adjustment range
No vertical climbing

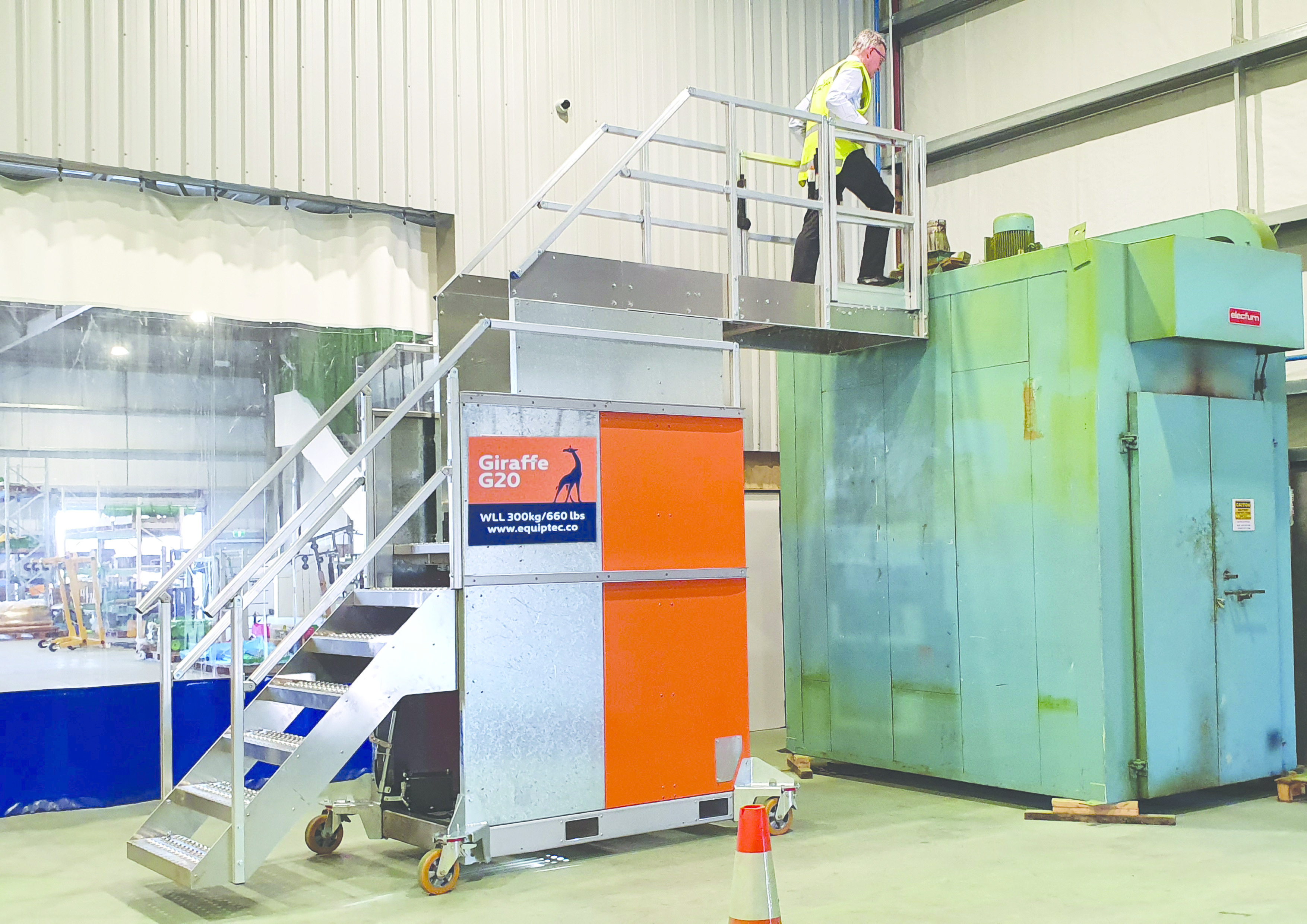

Extra long free cantilever deck includes 3 exit gates
Huge range of options can be retrofitted

Download Giraffe G20 Spec Sheet

Key Product Features

1

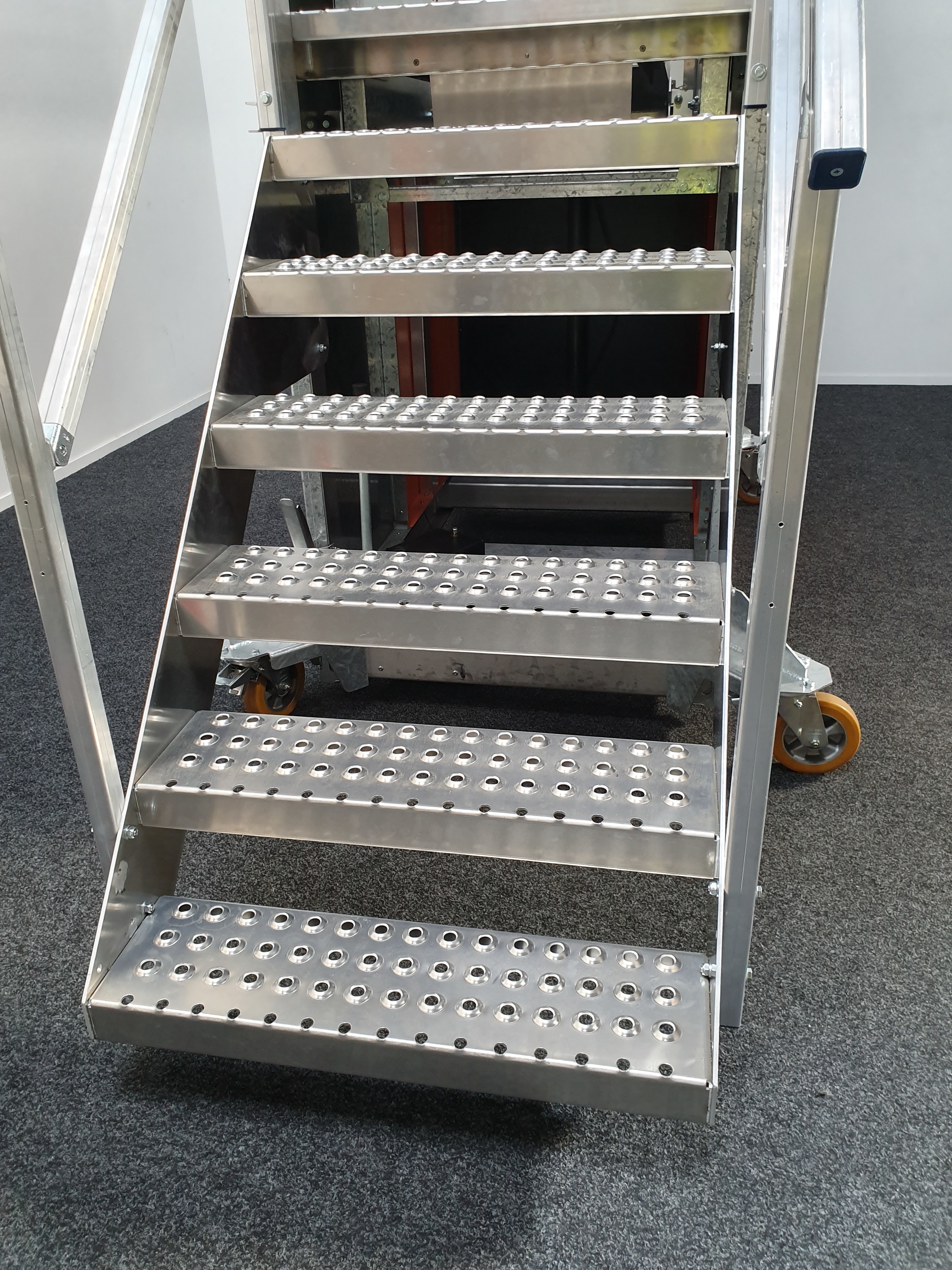

Efficent to climb

with constant grade stair at any platform height
2

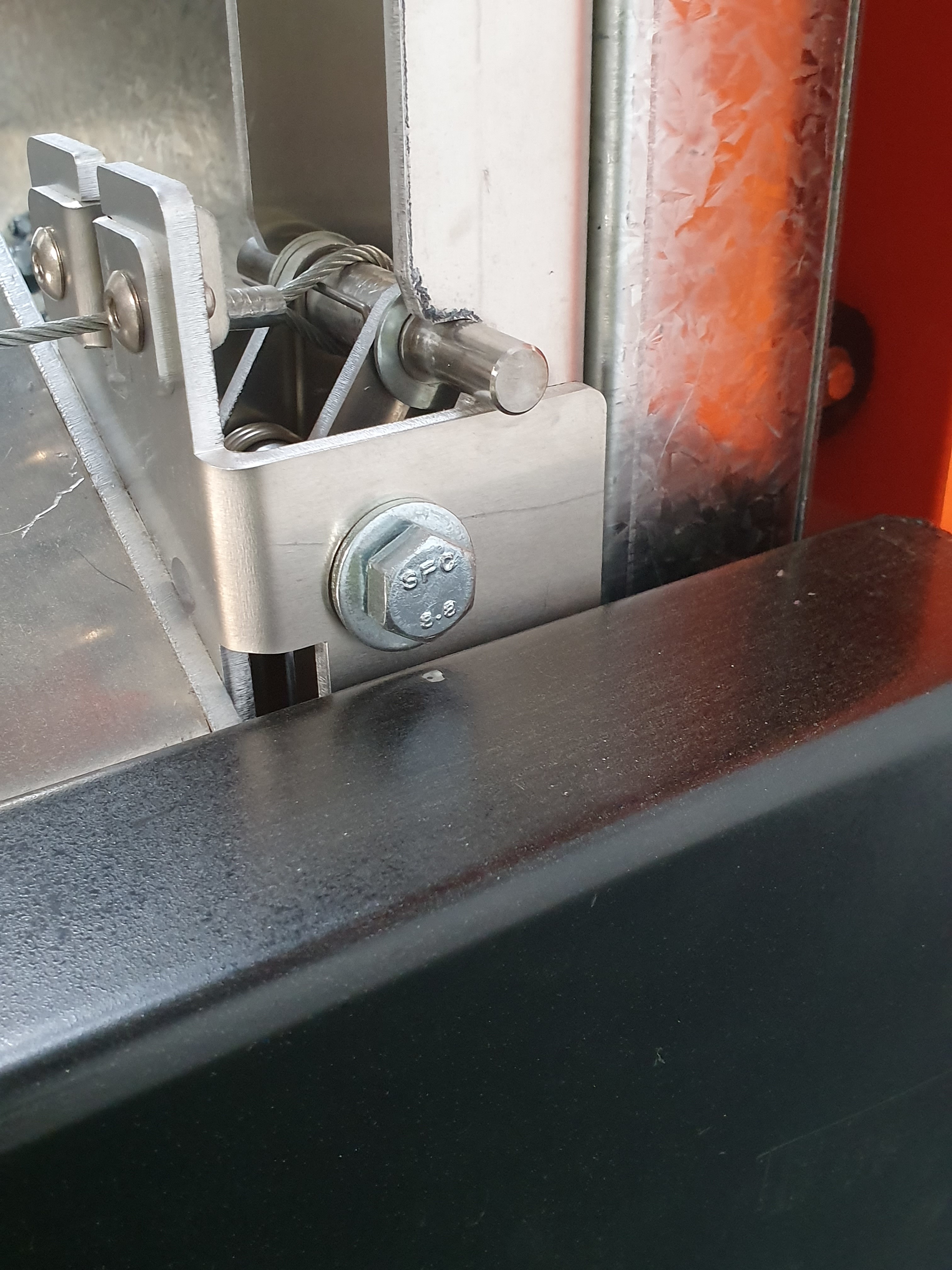

Anti sway platform locks

Physical lock at every step height
3

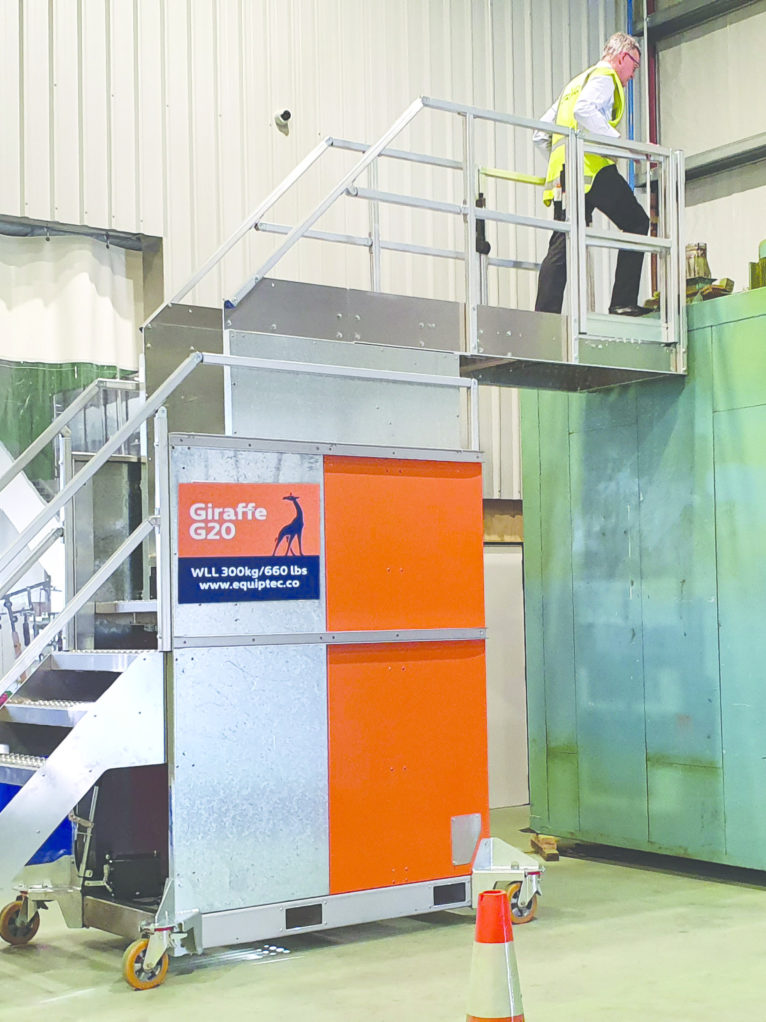

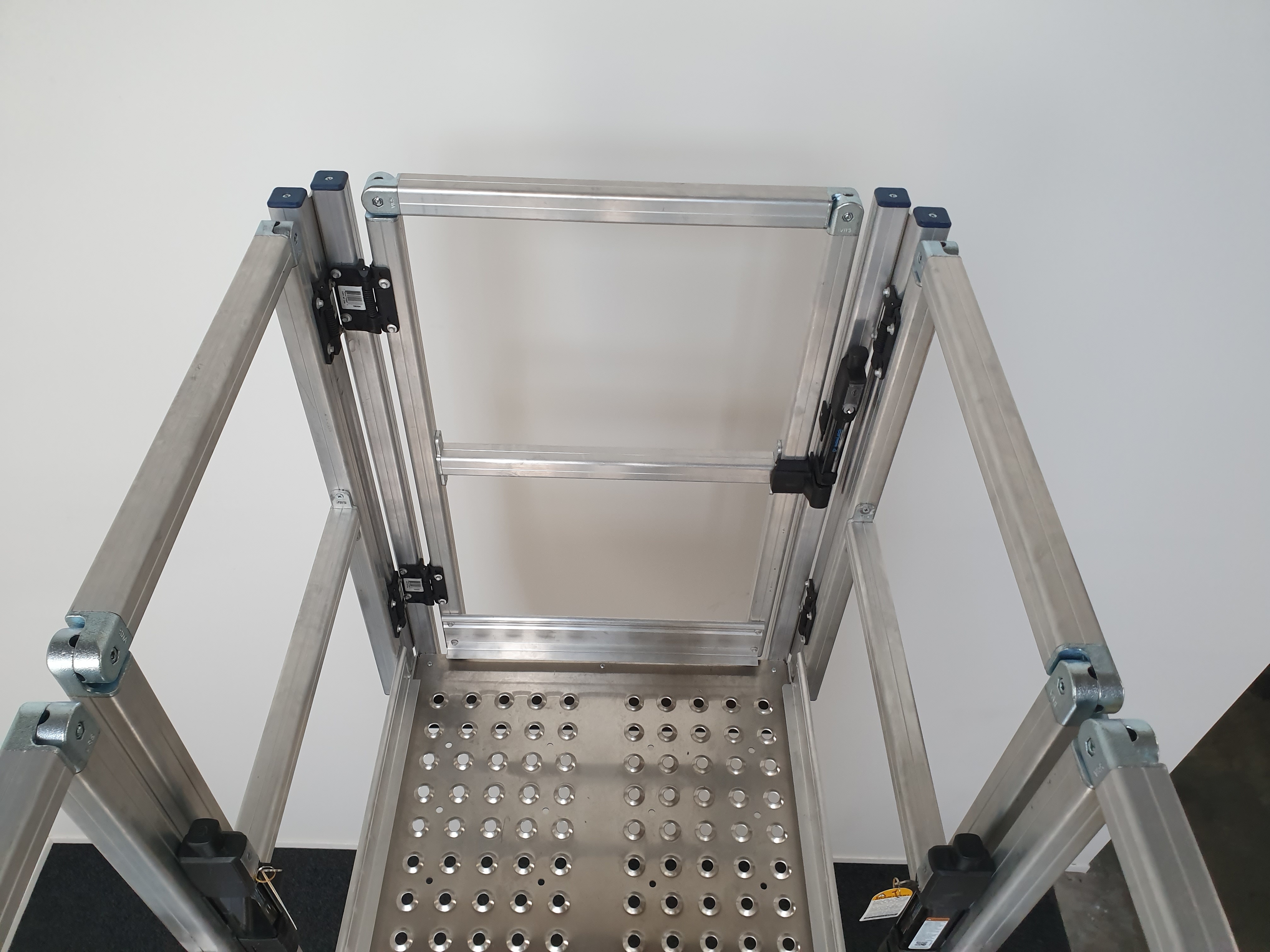

3 Gate gives access to work surface

off the end or either side
4

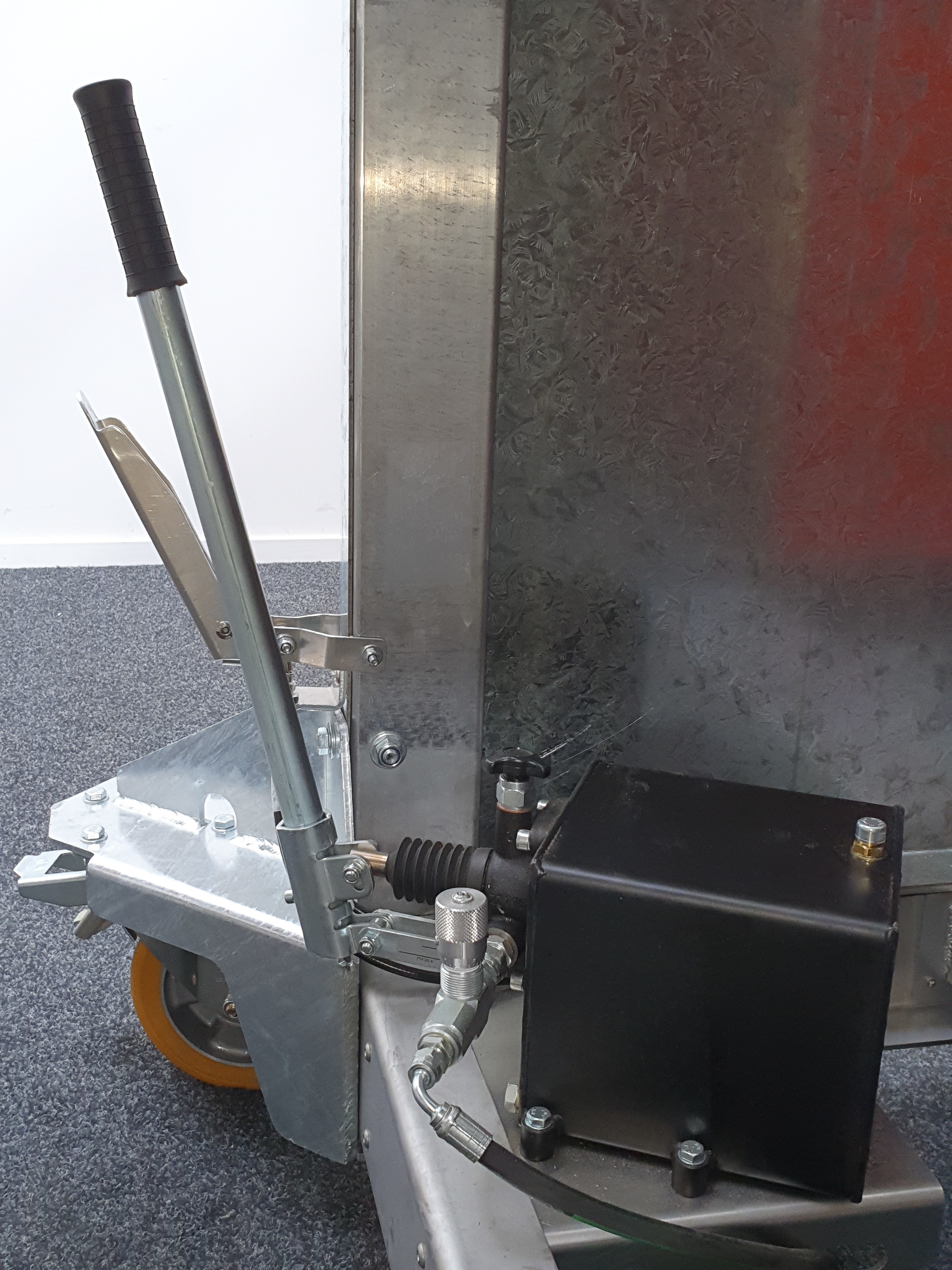

Safe and steady height adjustment

with hydraulic safety valve and decent speed control valve
5

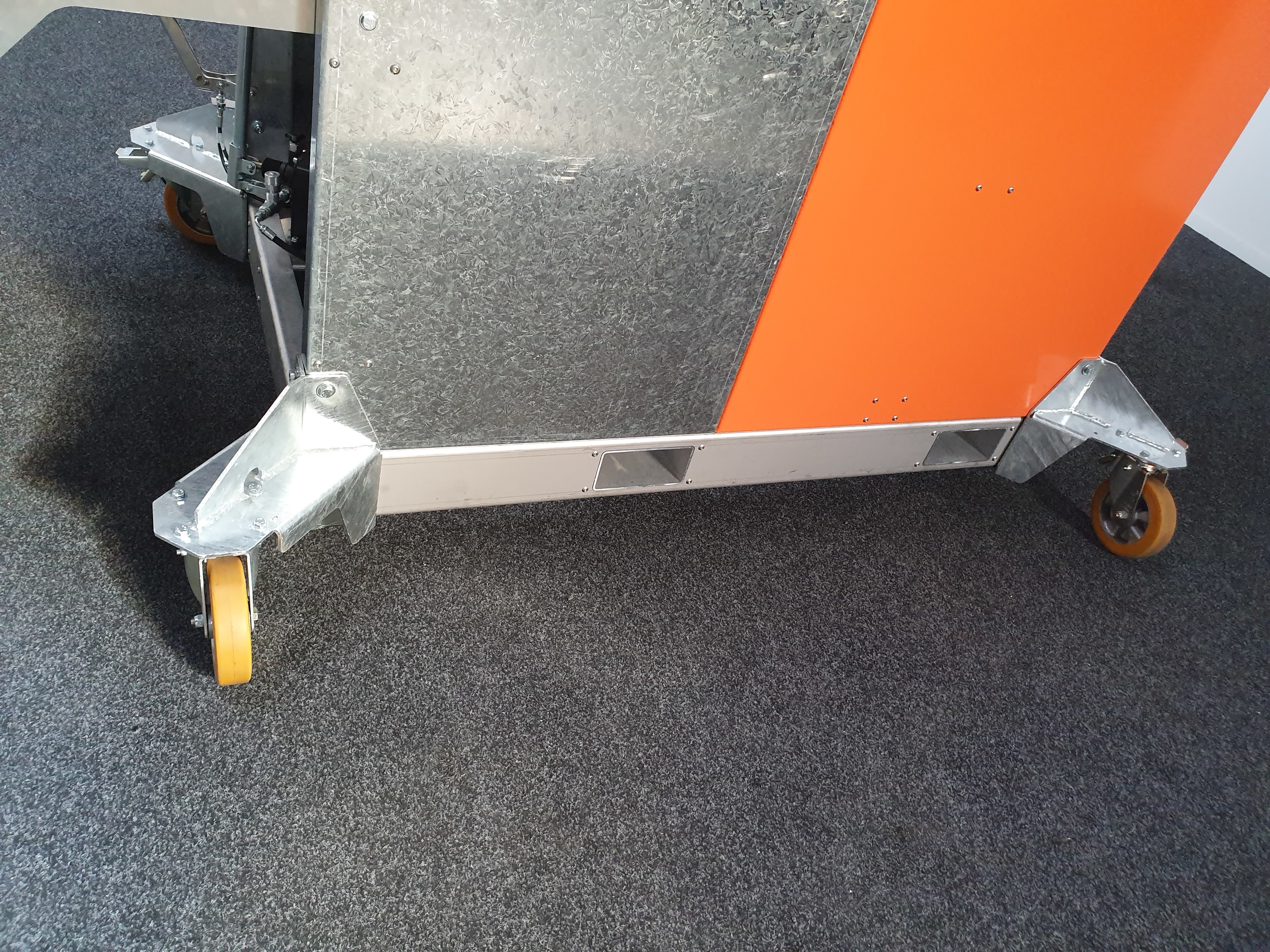

Minimal floor footprint

that remains the same for all platform heights

6

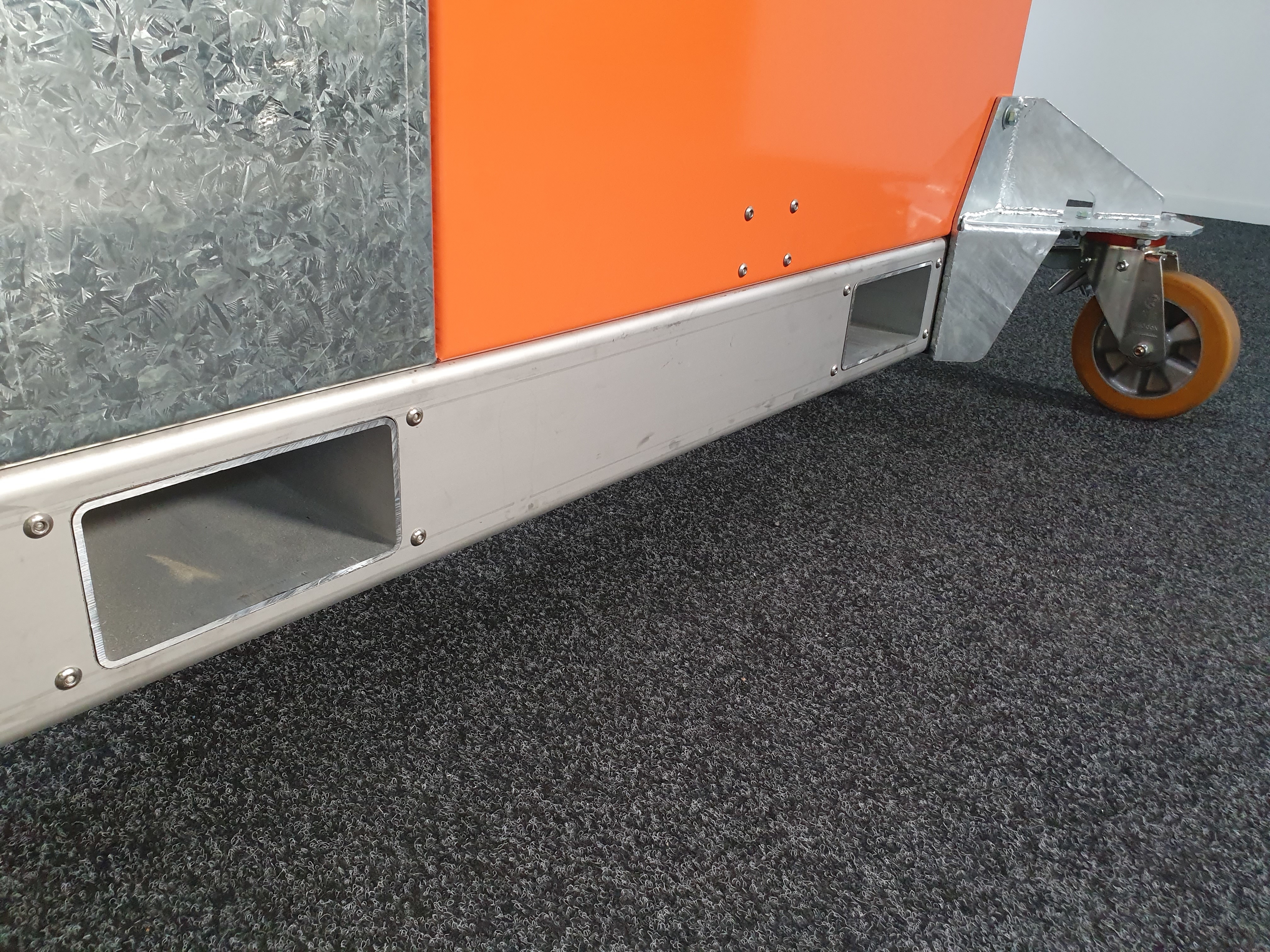

Easy to load and transport

with forklift pockets in chassis
7

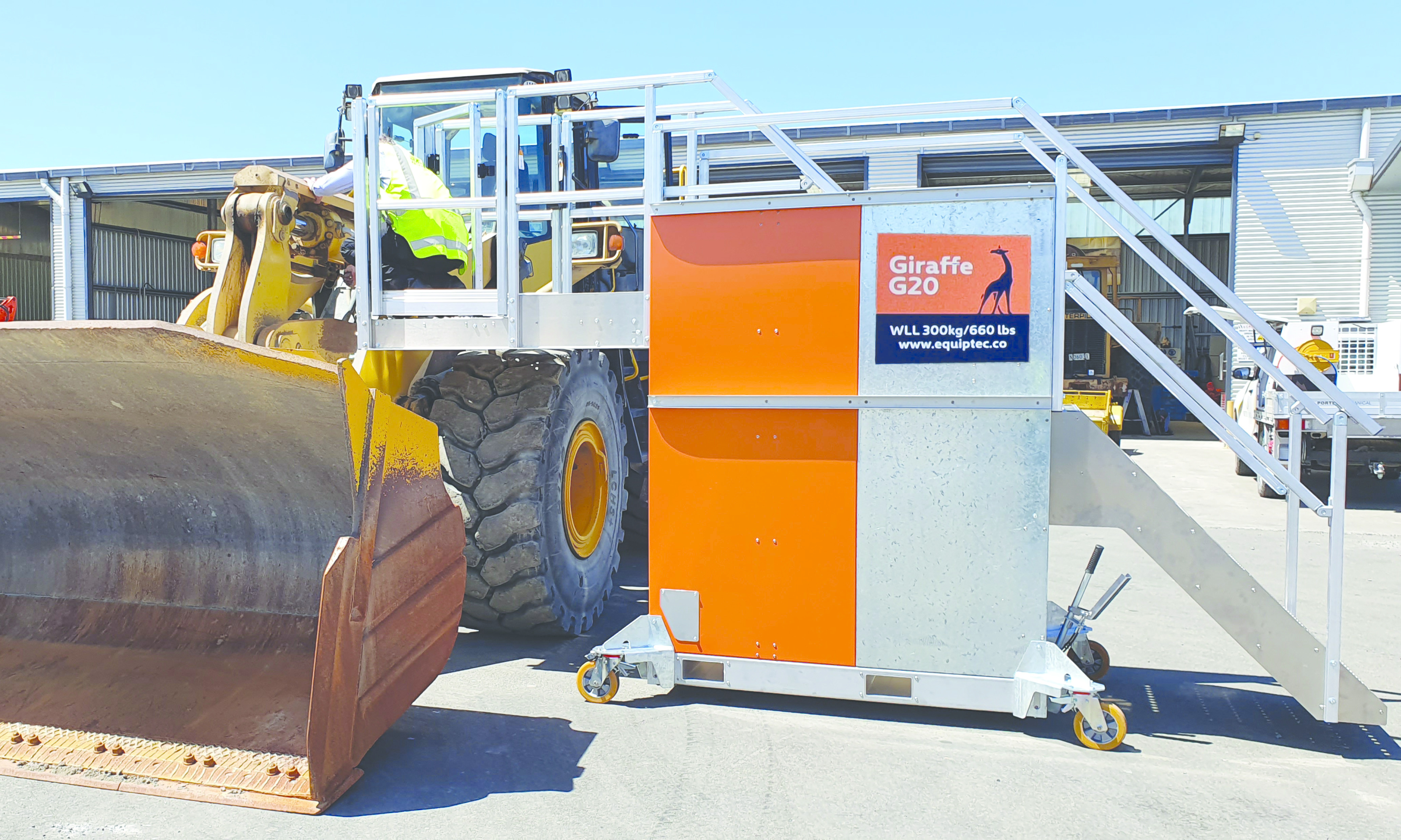

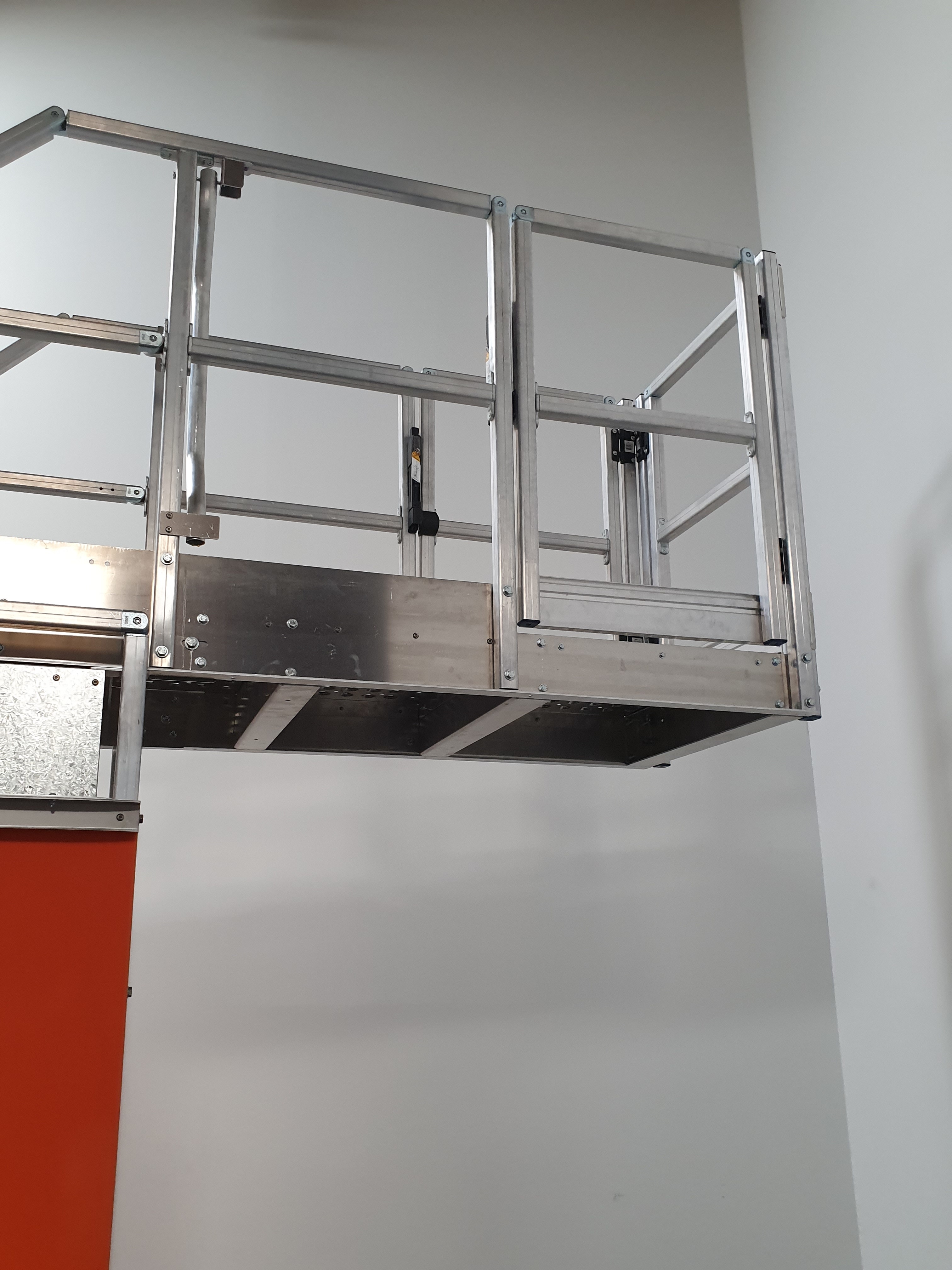

Reach over obstacles

with the generous 1.6m platform
8

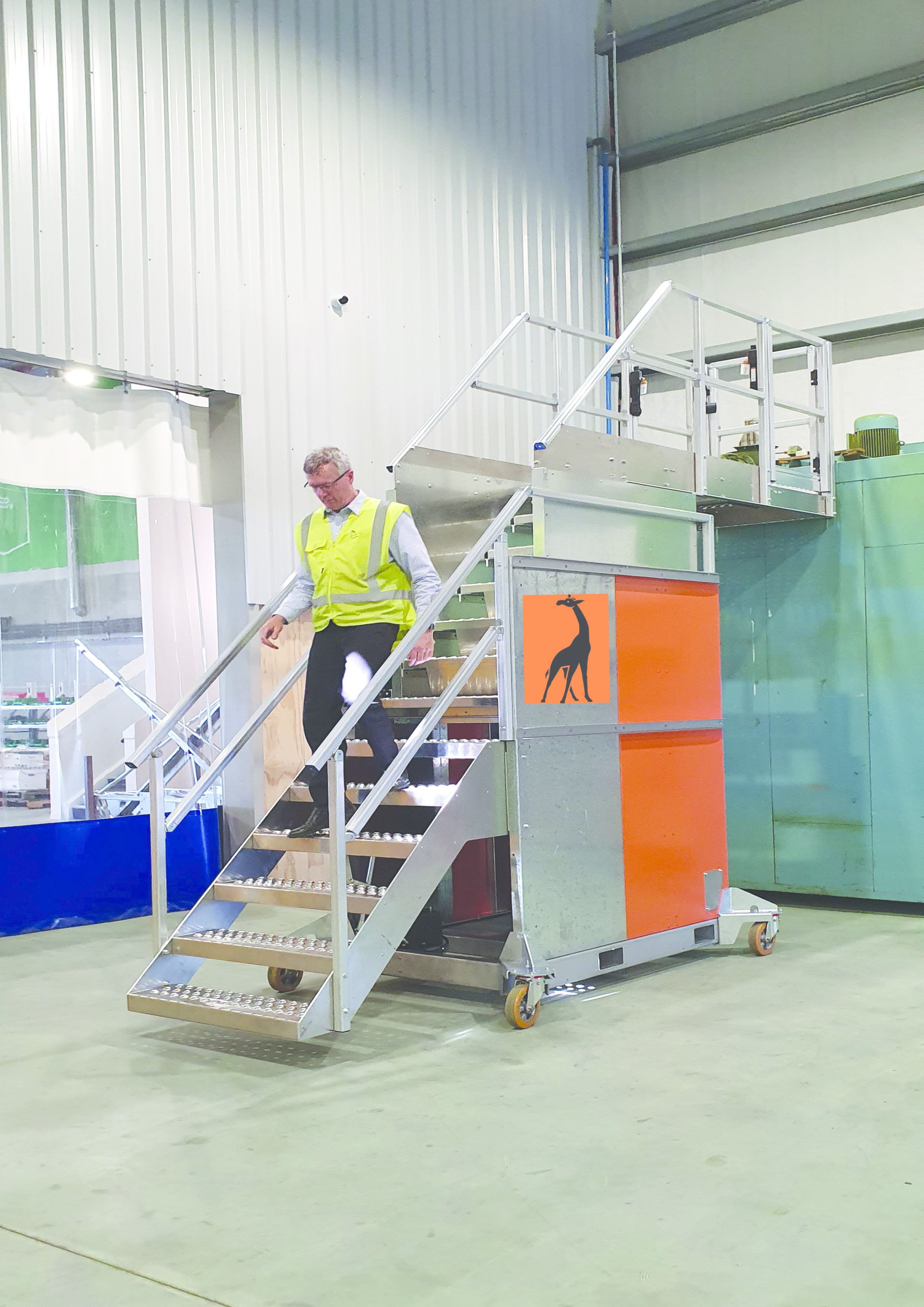

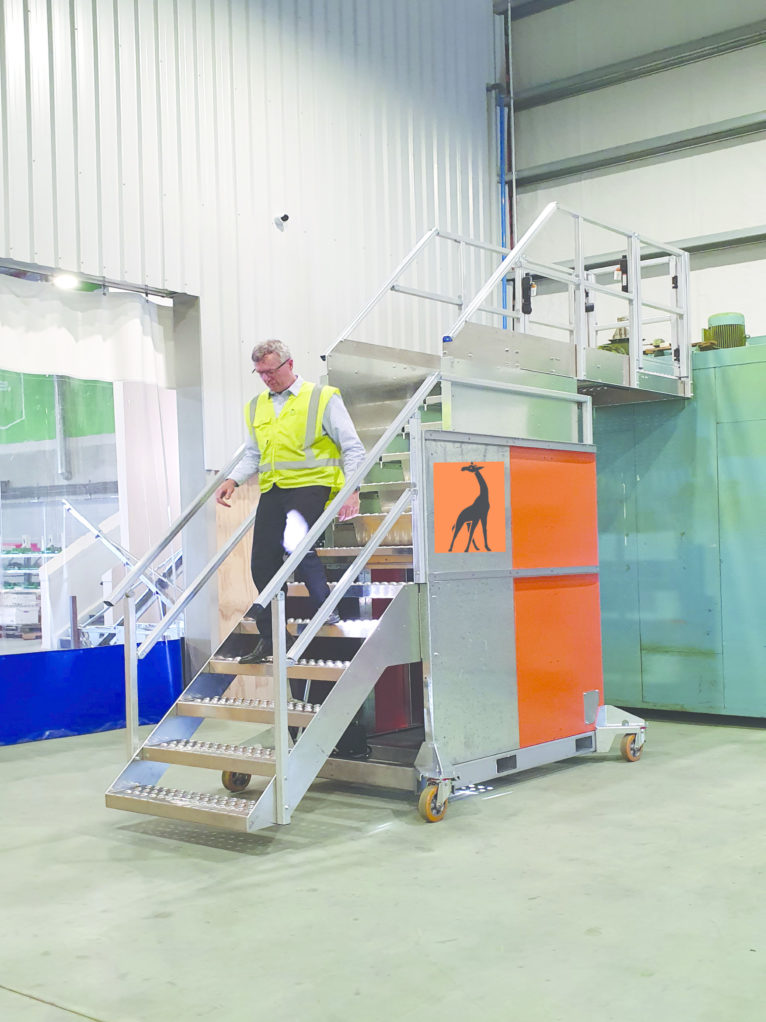

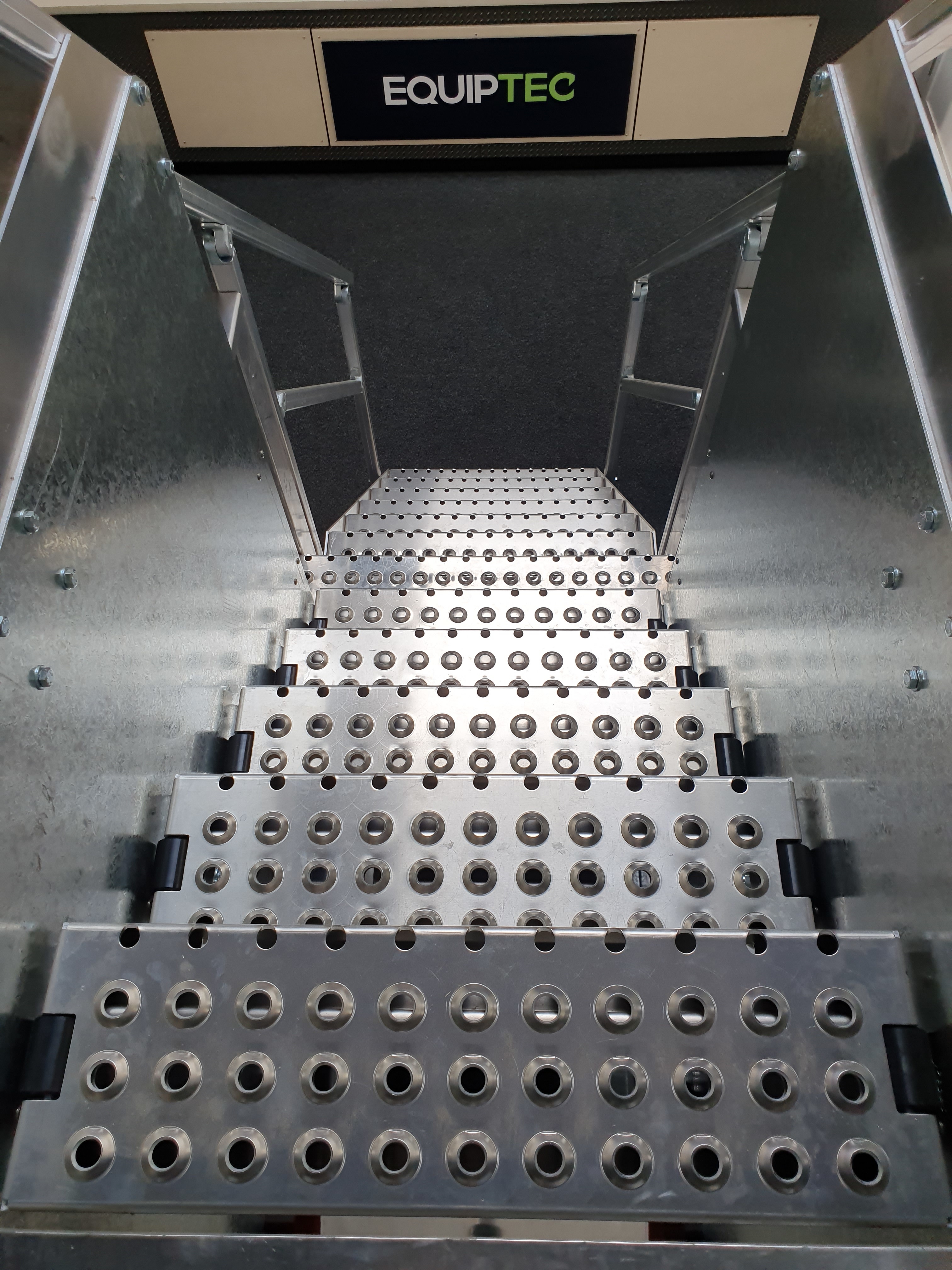

Climb or decend hands free

Spacious, easy gradient stairs
9

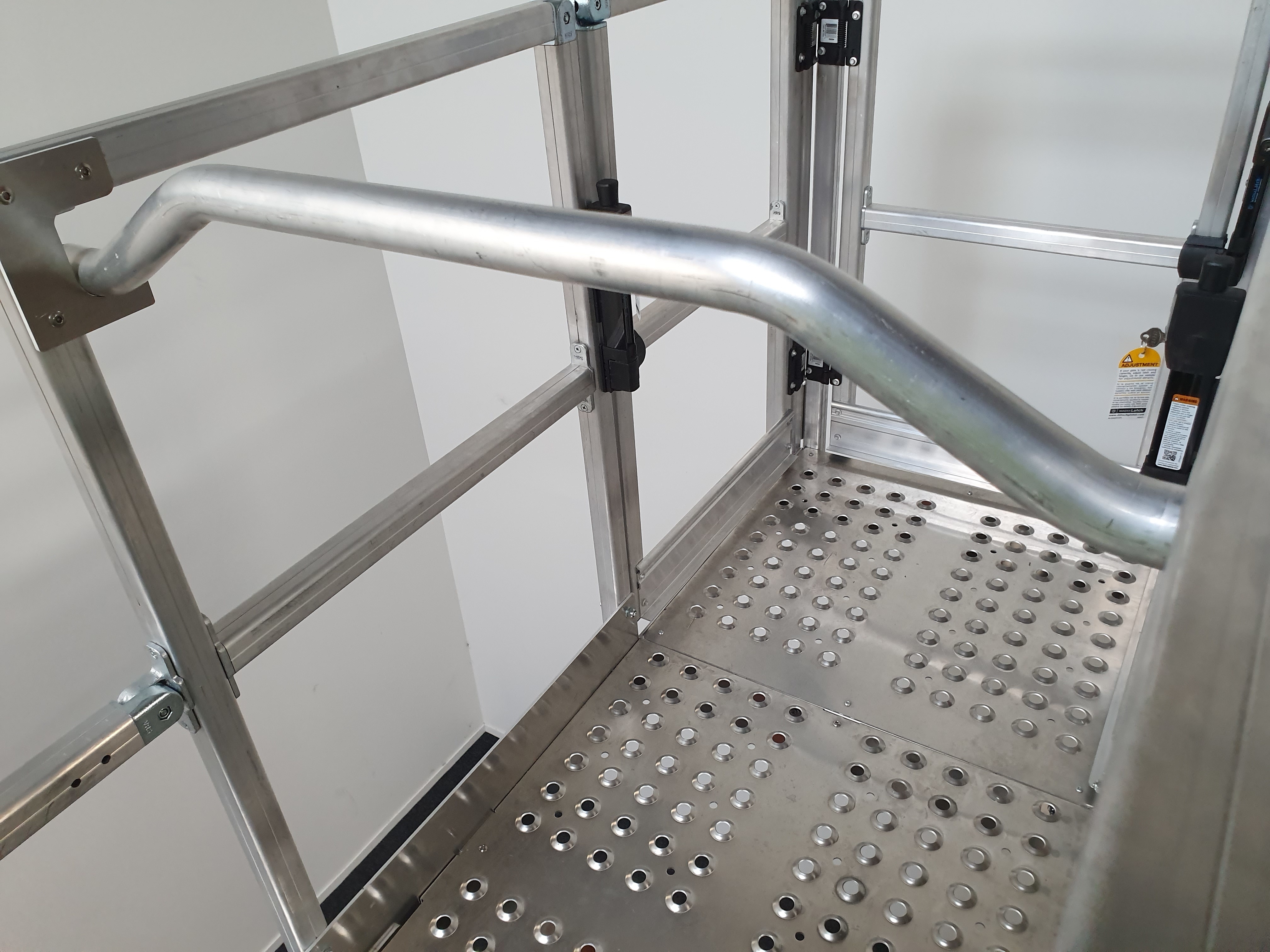

Prevent falls down the stair

with the firm safety bar

1

Efficent to climb

with constant grade stair at any platform height
2

Anti sway platform locks

Physical lock at every step height
3

3 Gate gives access to work surface

off the end or either side
4

Safe and steady height adjustment

with hydraulic safety valve and decent speed control valve
5

Minimal floor footprint

that remains the same for all platform heights
6

Easy to load and transport

with forklift pockets in chassis
7

Reach over obstacles

with the generous 1.6m platform
8

Climb or decend hands free

Spacious, easy gradient stairs
9

Prevent falls down the stair

with the firm safety bar

Model Specifications

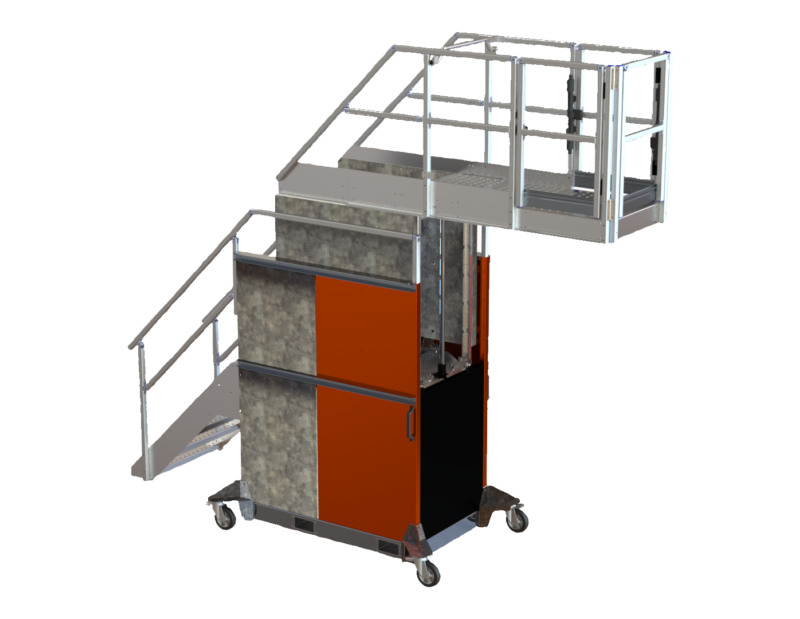

G20

Deck Height From	1.58m to 2.93m
Overall Width	1456mm
Overall Length	4495mm
Platform Width	780mm
Platform Length	1786mm

The Giraffe G20 system includes many retrofittable accessories allowing you to configure a more exact solution for your access challenges. And when your needs change...so can your G20!

Slide Out Deck

The Slide Out Deck allows you to reach out up to 2.9m over an obstacle, even with a 150kg loading. It still features 3 exit gates as does the standard deck and rolls out effortlessly at any height. Once you are finished with it, simply slide it back in out of the way.

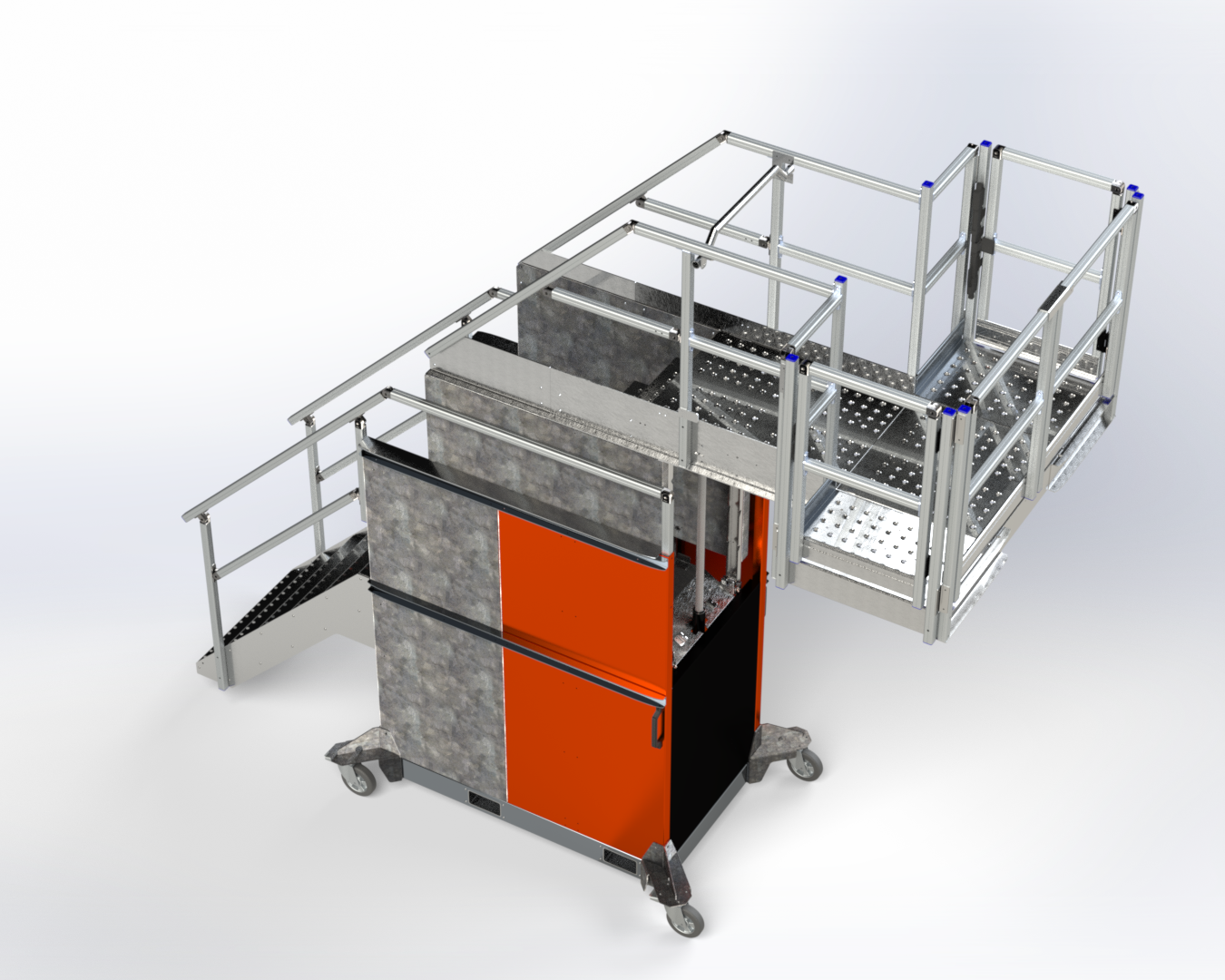

Hammerhead Deck

If you need to have 2 workers working side by side...the Hammerhead is your answer. With a capacity of 200kg WLL this deck not only gves more room, but also offer both side gates and individually removable front facing gates. Thats great unobstructed access to the workface on one or both sides.
Angled Deck

When you are faced with tight space the G20 Angled Deck will save you precious room. With the ability to park your G20 parallel to your work project and "walk the plank" straight out at 90 degrees from the main deck...this option is awesome! With a 150kg capacity it includes an end gate and the same pack components can be assembled either to the right hand or left hand sides.

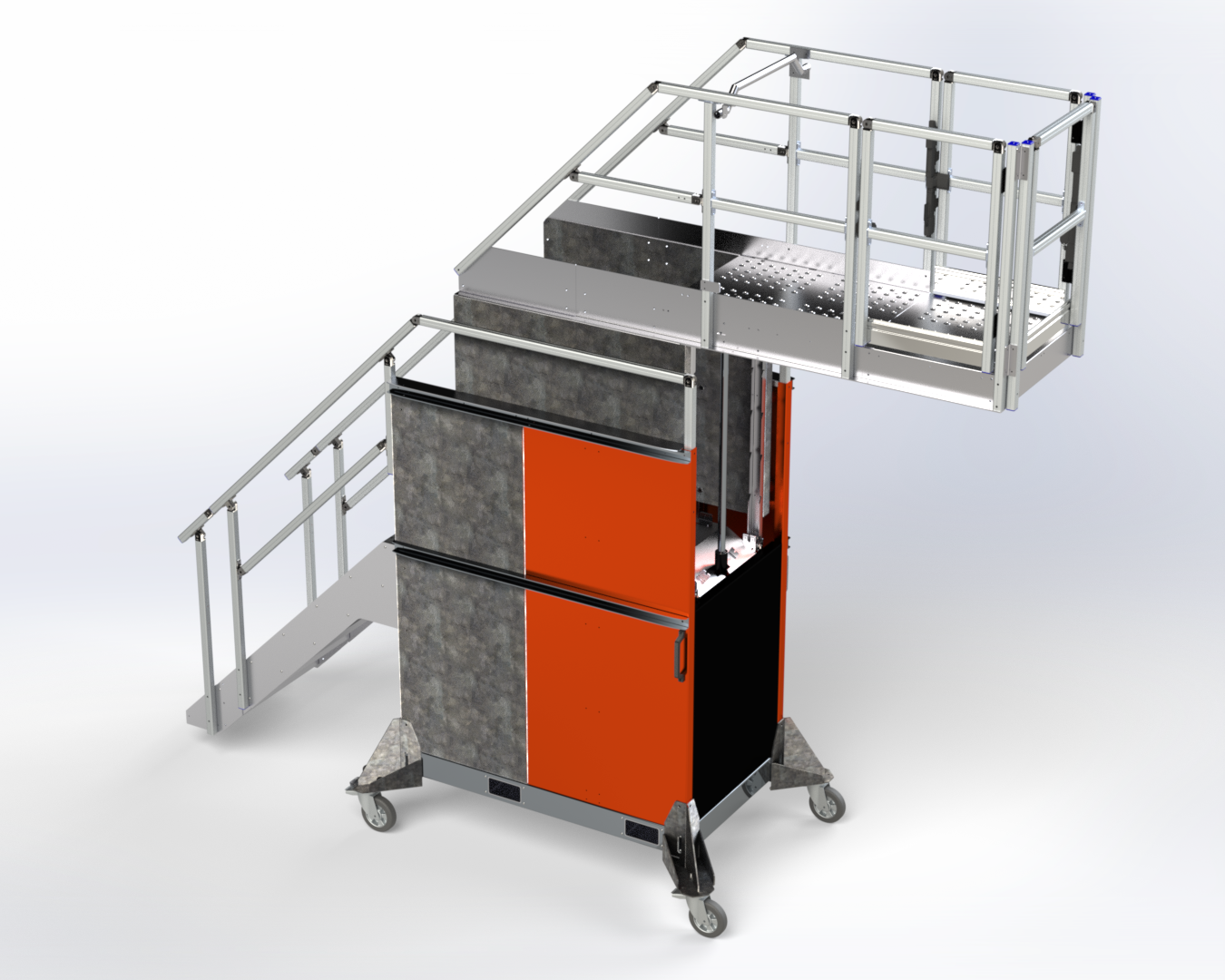

One Step Extension

Lifts the standard Giraffe G20 up 225mm in height

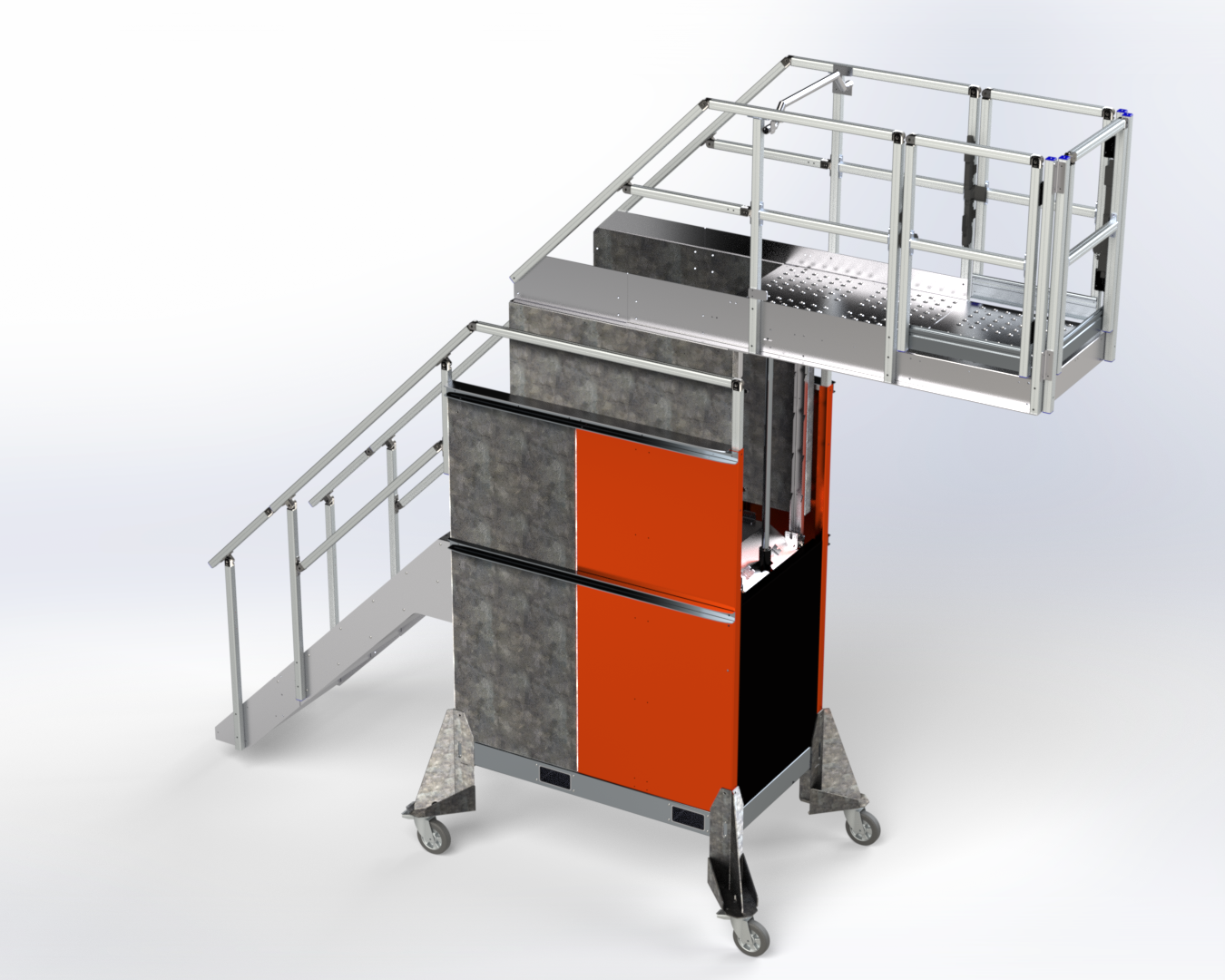

Two Step Extension

Lifts the standard Giraffe G20 up 450mm in height

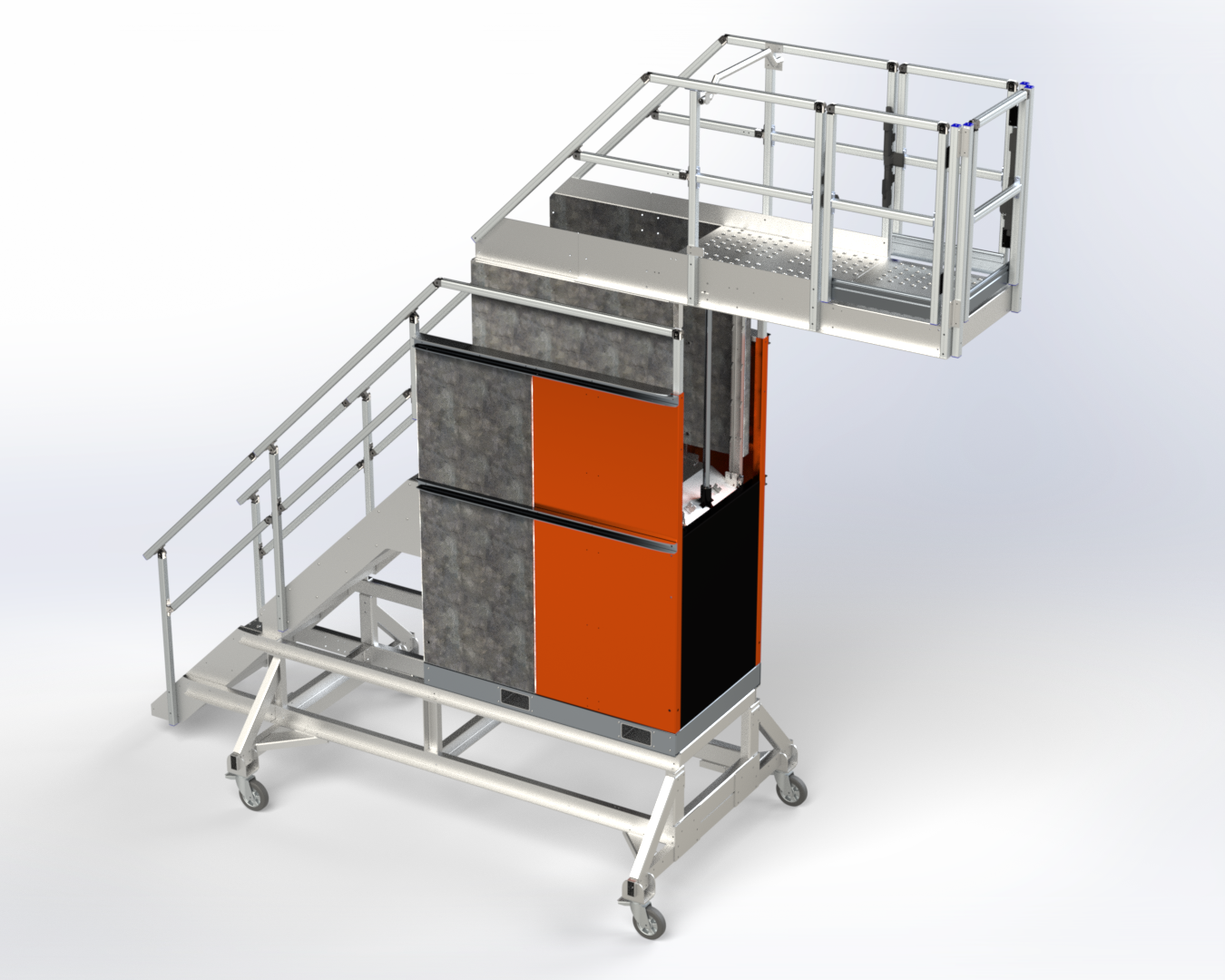

Four Step Sub Chassis

Lifts the standard Giraffe G20 up 900mm in height
Eight Step Sub Chassis

Complete with compliant lading the 8 Step Sub Chassis lift the standard Giraffe G20 up 1800mm in height
